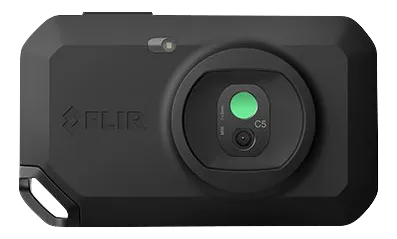

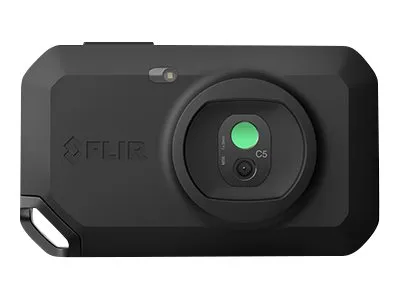

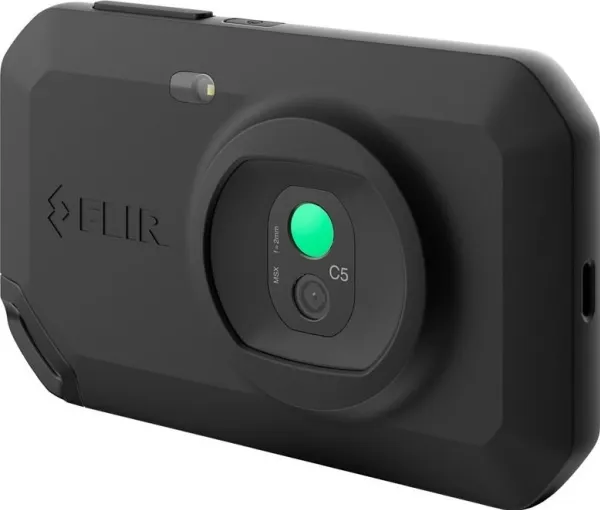

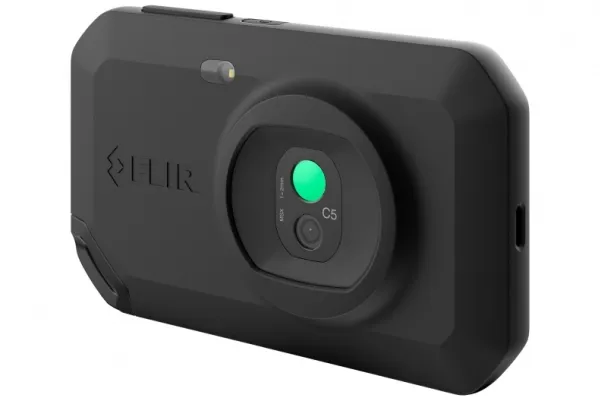

FLIR C-5 kamera med termisk billede Sort Indbygget skærm 160 x 120 pixel

The FLIR C5 compact thermal camera is your go-to tool for building inspections, facilities maintenance, HVAC/R, electrical repair and other troubleshooting applications.

Featuring a thermal camera, visual inspection camera and LED flashlight, the powerful FLIR C5 makes it easy to identify hidden problems.

Built-in FLIR Ignite™ cloud connectivity allows direct data transfer, storage and backup, so images are always available on all your devices.

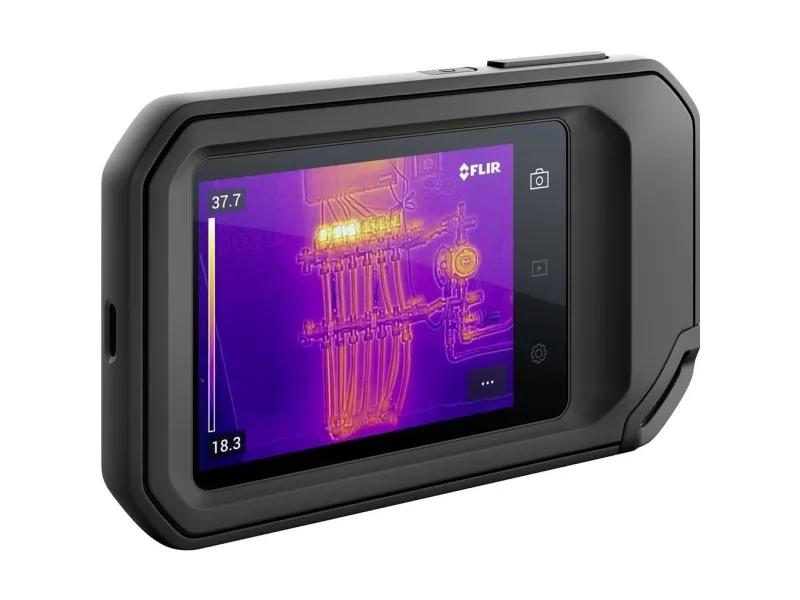

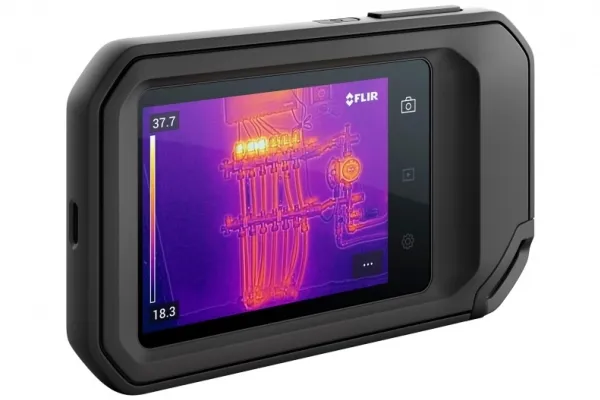

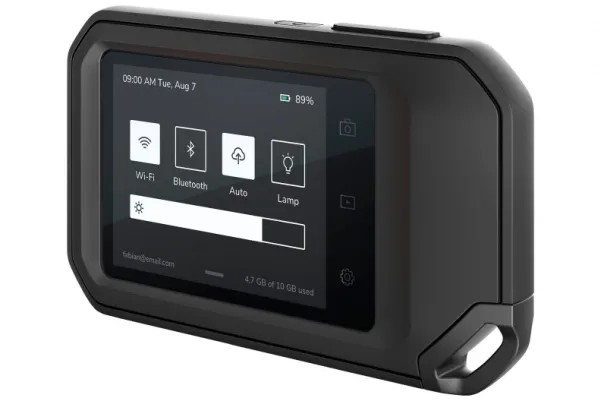

The 3.5" integrated touchscreen is simple to use, so you can quickly inspect, document repairs and share evidence with customers.

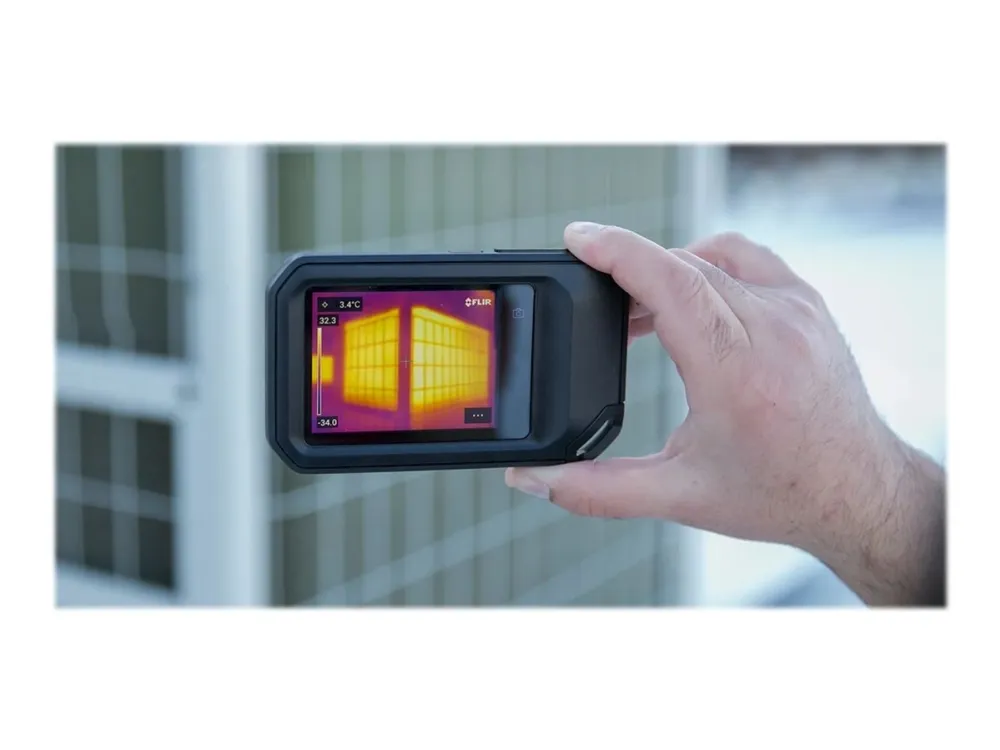

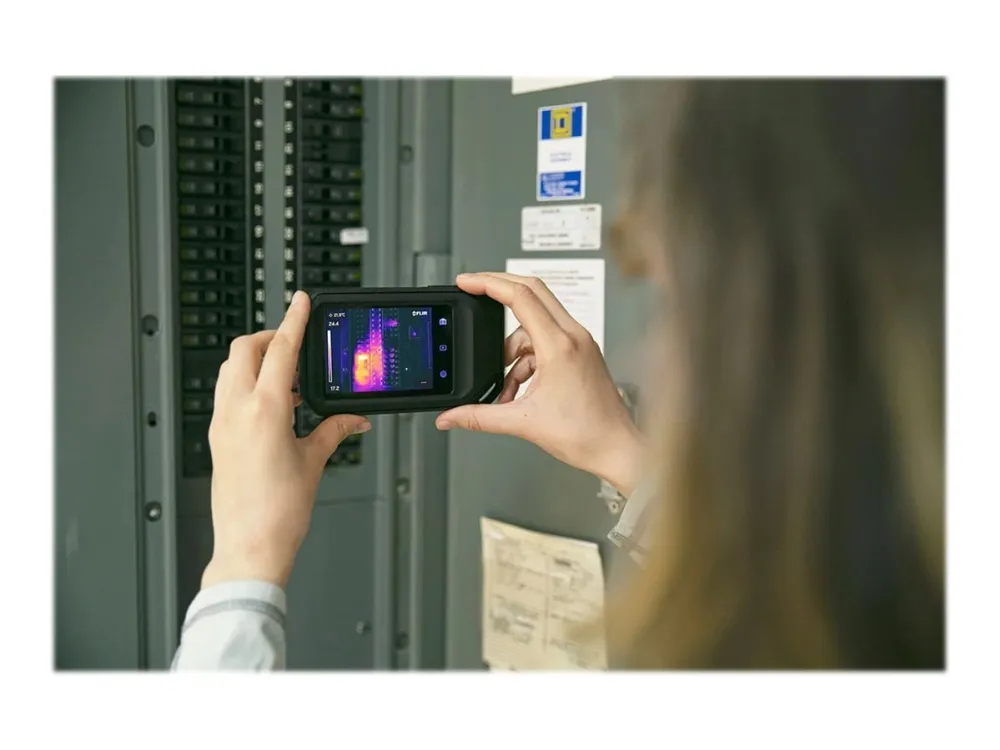

With the FLIR C5 in your pocket, you’ll be ready anytime to find hot fuses, air leaks, plumbing issues and more.
Find and troubleshoot
Quickly find hidden faults and reduce diagnostic time with this powerful, professional tool

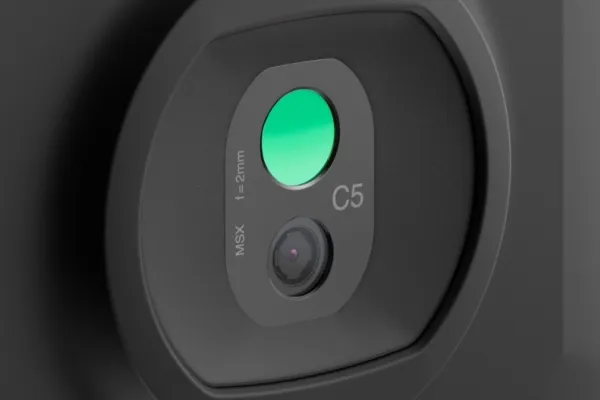

Identify and troubleshoot problems faster with the 160x120px true thermal imager and 5-megapixel visual camera
Save time on manual thermal adjustments using 1-Touch Level/Span, which auto-adjusts the level and span in an area of interest with one touch
Instantly recognize the location of a temperature issue with FLIR MSX® (Multi-Spectral Dynamic Imaging), which uses scene details from the built-in visual camera and embosses them onto the full thermal image
Document and share
Pinpoint and communicate potential issues faster
Upload directly to FLIR Ignite™ to conveniently store, organize, and back-up images
Identify and describe potential issues by adding annotations to images
Share findings easily and securely by sending a password-protected link via email
Provide customers professional reports with images that document problems and repairs using preferred software, such as FLIR Thermal Studio
Rugged, reliable and compact
Take the portable, affordable C5 with you to every job – it’s the perfect tool for every person on your team
IP54 enclosure provides a high level of protection against dust and water
Designed to withstand a 2m (6.6ft) drop
Carry the compact C5 in your pocket or stow easily in a crowded tool bag
See into dark, difficult-to-reach areas with the help of the bright LED flashlight

Find and fix problems

Find hidden faults quickly and reduce diagnostic time with this powerful professional tool
- Exact localization of faults thanks to the thermal imaging module with a resolution of 160x120px
- Wide temperature measurement range - from -20 ° C to 400 ° C (from -4 ° F to 752 ° F)
Diagnose problems faster with FLIR's patented MSX® (Multi-Spectral Dynamic Imaging) image enhancement technology, which uses captured image details from the built-in 5-megapixel visible light camera and extrudes them into the full thermal image
- Time saving thanks to the possibility of automatic regulation of the temperature level and range in the tested area with the push of a button
- Preview of thermal images in your preferred color palette on a bright 3.5 "color display

Document and share

- Specify and log potential problems faster
- Conveniently store, organize and backup photos with direct upload to FLIR Ignite ™ cloud
- Identification and description of detected problems by adding annotations to recorded images
- Easily and securely share results thanks to the ability to send password-protected links via email
- Providing customers with professional reports with photos documenting the detected problems and the repair result using their preferred software such as FLIR Thermal Studio

Rugged, reliable and compact

- Take the portable, affordable FLIR C5 with you for any job - it's the perfect tool for all members of your team
- IP54 housing provides a high level of protection against dust and water
- Designed to withstand drops of up to 2m
- Thanks to its small size, you can carry it in a pocket or in a crowded tool bag
- Bright LED flashlight makes it easier to work in dark, hard-to-reach areas

Technical specification

Image and lens parameters
- Infrared sensor: 160x120px (19200px)
- Thermal sensitivity / NETD: 70mK
- Field of View (FOV): 54 ° x42 °
- Minimum sharp image distance: thermal 0.1m, MSX® 0.3m
- Image refresh rate: 8.7Hz
- Image sharpness: fixed focus
- Infrared spectrum range: from 8µm to 14µm
- Digital camera: 5Mpx, fixed focus

Image presentation
- Display: 3.5 "color
- Capacitive touch screen
- Automatic image orientation
- Image presentation modes: thermal image, visible image, MSX® (adds details from the camera to the full resolution of the infrared image), picture-in-picture
- Image adjustment: automatic level and range, manual level and range, 1-touch level and range
- Gallery: thumbnails and custom folder structure
- Color palettes: iron, grayscale, rainbow, rainbow HC (high contrast), arctic, lava

Analysis and measurement
- Measurement range: -20 ° C to 400 ° C (-4 ° F to 752 ° F)
- Measurement accuracy at 15-35 ° C (59-95 ° F) ambient temperature and object temperature above 0 ° C (32 ° F): ± 3 ° C (± 5.5 ° F) reading value at 0-100 ° C (32-212 ° F) or ± 3% of reading at 100-400 ° C (212-752 ° F)
- Measurement functions: point measurement, area with max / min. temperature
- Measurement correction: emissivity (matte / semi-matte / glossy + user settings), apparent reflected temperature, atmospheric compensation

Storage and transmission of images
- Storage media: internal memory and built-in FLIR Ignite ™ cloud connectivity (with Wi-Fi)
- Internal memory capacity:> 5000 photos
- Recording format: standard JPEG, with 14-bit measurement data

Communication and connectivity

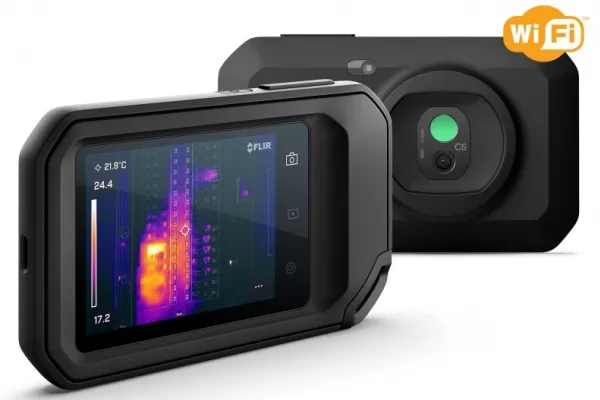

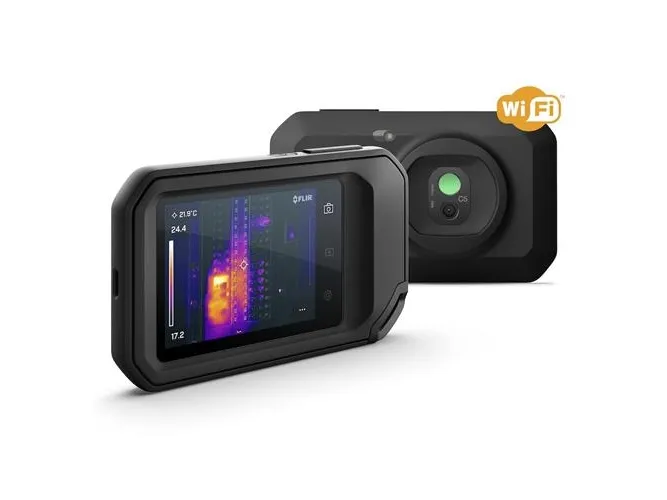

- Wi-Fi: 802.11 a / ac / b / g / n (2.4 and 5GHz)
- Wired data transfer: USB 2.0, Type-C connector
- Bluetooth®: PAN
- Photo Upload: Directly to FLIR Ignite ™ Cloud Library

Additional information
- Power supply: built-in Li-Ion battery
- Battery life: 4 hours
- Battery charging: USB-C (1A)
- Charging time: 2 hours
- External power supply: 5V, USB-C
- Working temperature: -10-50 ° C (14-122 ° F)
- Storage temperature: -40-70 ° C (-40-158 ° F)
- Built-in tripod entrance with ¼ "thread
- Protection class of the camera housing and lens: IP54 (IEC 60529)
- Drop resistance: up to 2m
- Manufacturer's warranty: 2 years for the product and 10 years for the detector (after registration on the manufacturer's website)
- Product dimensions: 138x84x24mm
- Product weight: 190g
- Package dimensions: 160x117x94mm
- Package weight: 517g
