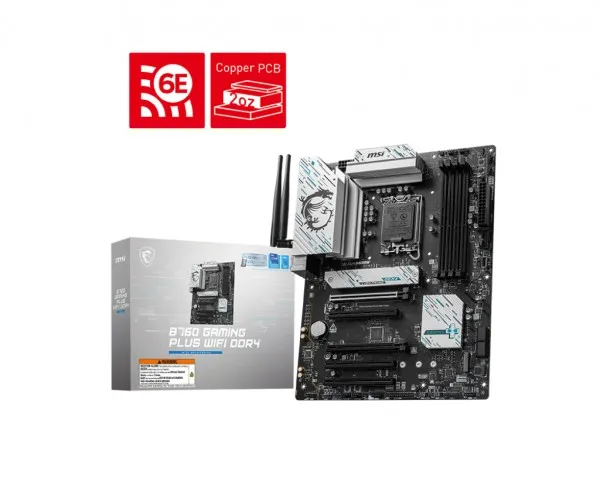

MSI B760 GAMING PLUS WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, DDR5-SDRAM, 192 GB, DIMM

Item no.: [10043909] | Manufacturer: MSI | Model no.: B760 GAMING PLUS WIFI | EAN: 4711377086561

Lager

In stock, order before 5 PM and we ship today (weekdays) More info

There are 1 in stock

The current price is valid as long as the local stock lasts

EUR 172,44

ex. VAT 137,95

Total incl. delivery 187,44

Read further specifications and description

B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

Produktbeskrivelse	MSI B760 GAMING PLUS WIFI - bundkort - ATX - LGA1700 sokkel - B760
Produkttype	Bundkort - ATX
Chipsættype	Intel B760
Processor-socket	1 x LGA1700 sokkel
Kompatible processorer	(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Max RAM-størrelse	192 GB
RAM understøttet	4 DIMM åbninger - DDR5, ikke-ECC, ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte	1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Generelt
Produkttype	Bundkort - ATX
Chipsættype	Intel B760
Processor-socket	LGA1700 sokkel
Max antal processorer	1
Kompatible processorer	(understøtter 12th og 13th Generation Intel Core/Pentium Gold/Celeron)
Understøttet RAM
Maks. størrelse	192 GB
Teknologi	DDR5
Bus Clock	6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz
Understøttet RAM-integritetskon	Ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur, Intel Extreme Memory Profiles (XMP) 3.0
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC897
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Realtek RTL8125BG
Netværks interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 4.0 x16 3 x PCIe 3.0 x16 (x1 modus) 1 x PCIe 4.0 x16 (x4-modus) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M åbning) 1 x M.2 socket (2242/2260/2280 M.2 Key M åbning) 1 x M.2 socket (Key E)
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -stikforbindelser: 1 x M.2 SATA-600 / PCIe 4.0 -stikforbindelser: 1 x M.2
Interface	1 x HDMI 1 x DisplayPort 4 x USB 2.0 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 1 x LAN (2.5Gigabit Ethernet) 2 x antenne 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 1 x audio linje-ind - mini-jack 1 x SPDIF-ud PS/2-tastatur/mus
Interne interfaces	4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x USB-C 3.2 Gen 2 - intern stik 1 x audio - intern stik 1 x seriel - intern stik 1 x Thunderbolt - intern stik 1 x SPI - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt, 4-pin ATX12V konnektor
Egenskaber
BIOS-egenskaber	MSI ClickBIOS 5, M-Flash
Hardware egenskaber	Water Pump Header, chassis intrusion styring, Extended Heatsink Design, M.2 Shield FROZR, MSI Core Boost, MSI Memory Boost, MSI Audio Boost, Digital PWM, MSI Steel Armor, 6 Layer PCB, 2oz Copper PCB, 12+1+1 Phase Power Design, DIY Friendly Design, Surface Mount Technology (SMT)
Diverse
Udstyr inkluderet	IO-skjold, Wi-Fi-antenne, m.2 screw/standoff-sæt
Medfølgende ledninger	1 x Seriel ATA kabel
Med software	AIDA64 Extreme (60 dages prøvetid), MSI Center, Norton 360 Deluxe (60 dages prøvetid)
Overensstemmelsesstandarder	DisplayPort 1.4, FCC Part 15 Class B, WEEE, JIS C 0950
Bredde	30.48 cm
Dybde	24.348 cm
