Levenhuk MS3 Mechanical Scale

Item no.: [8540278] | Manufacturer: Levenhuk | Model no.: 71786 | EAN: 5905555003511
Fjernlager (5-7 hverdage)
The item is in a remote warehouse, delivery time is 5-7 business days. More info

Shipping 15,00 - GLS
EUR 43,68
ex. VAT 34,94
Total incl. delivery 58,68
Read further specifications and description
Attachable scale to control slide movements along – X and Y axes. Features coordinate and nonius scales

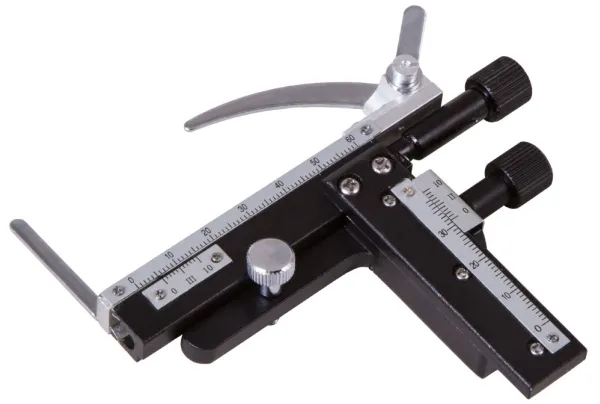

The Levenhuk MS3 Mechanical Scale is a removable accessory useful with a biological microscope for detailed examination of microscope slides. It is installed on the stage instead of the slide holders and is fixed with a stage screw.

With the Levenhuk MS3 Mechanical Scale, you can move the microscope slides along X axis (left-right) and Y axis (forwards-backwards), and also determine their coordinates. The accessory is supplied with coordinate and nonius scales – the auxiliary scales to make measurements more precise.


The scale is compatible with the following microscopes:



The installation is not recommended for microscopes that have plastic bodies as damage to the microscope may occur.

BrandLevenhuk, Inc., USA
Warranty2 years
EAN5905555003511
Package size (LxWxH)12x11x2 cm
Shipping Weight0.13 kg
Movement range along X axis, mm0 — 57
Movement range along Y axis, mm0 — 30
Measuring scale division value, mm1
Distance between the dowel pins, mm35±0.1
Distance between the dowel pins and the stage screw, mm17.5±0.1
Dowel pin diameter, mm3
Stage screw thread sizeM4
Scale materialmetal
Handle materialplastic
