MSI MPG B850I EDGE TI WIFI - Motherboard - Mini-ITX - Socket AM5 - AMD B850 Chipsatz - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - Onboard-Grafik (CPU erforderlich) (7E79-001R)
Item no.: [24520383] | Manufacturer: MSI | Model no.: MPG B850I EDGE TI WIFI | EAN: 4711377360906
Lager
In stock, order before 5 PM and we ship today (weekdays) More info
Shipping 15,00 - GLS
SPECIAL OFFER
There are 1 in stock
The current price is valid as long as the local stock lasts
EUR
277,15
ex. VAT 221,72
Total incl. delivery
292,15
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login
The MSI MPG B850I EDGE TI WIFI motherboard is designed for compact and powerful computing, making it an ideal choice for builders focusing on high performance in smaller form factors. With support for AMD Ryzen 7000/8000/9000 Series processors and DDR5 SDRAM at speeds up to 8200 MT/s when overclocked, this motherboard provides a dynamic platform for gaming and productivity. It features a mini ITX design, allowing for easier integration in compact cases while maintaining advanced functionalities such as multi-GPU support and enhanced thermal solutions through Dr.MOS and Frozr AI Cooling.
Equipped with robust connectivity options, the MPG B850I EDGE TI WIFI offers multiple USB ports including USB-C 3.2 Gen 2x2, and a comprehensive audio solution powered by the Realtek ALC4080 codec for high definition sound. Networking capabilities include Wi-Fi 7 support and Bluetooth 5.4, empowering users with fast and reliable connections for gaming or streaming. The inclusion of MSI Mystic Light and MSI Steel Armor further enhances the aesthetic and durability of this motherboard, making it a powerful component as well as visually appealing for any build.
Produktbeskrivelse
MSI MPG B850I EDGE TI WIFI - bundkort - mini ITX - Socket AM5 - AMD B850
Produkttype
Bundkort - mini ITX
Chipsættype
AMD B850
Processor-socket
1 x Socket AM5
Kompatible processorer
(understøtter Ryzen 7000/8000/9000 Serien)
Max RAM-størrelse
128 GB
RAM understøttet
2 DIMM slots - DDR5, ikke-ECC, ikke bufferet
Lagringsporte
2 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte
1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via samlekasser)
Audio
HD Audio (8-kanaler)
LAN
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Dobbelt kanal hukommelses arkitektur, AMD EXPO-teknologi
Audio
Type
HD Audio (8-kanaler)
Audio codec
Realtek ALC4080
Overensstemmelsesstandarder
High Definition Audio
LAN
Netværk controller
Realtek RTL8126
Netværks interfaces
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Ekspansion / Konnektivitet
Ekspansionsåbninger
1 x CPU 2 x DIMM 288-pins 1 x PCIe 5.0 x16 2 x M.2 socket (2280 M.2 Key M-åbning) 1 x M.2 socket (Key E)
Grænseflade (lagring)
SATA-600 -stikforbindelser: 2 x 7-pin Seriel ATA - RAID 0 / RAID 1 PCIe 4.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1 PCIe 5.0 -stikforbindelser: 1 x M.2 - RAID 0 / RAID 1
Interface
1 x HDMI 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 1 x LAN (5Gigabit Ethernet) 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x SPDIF-ud 2 x antenne
Interne interfaces
1 x USB 3.2 Gen 2 - intern stik 2 x USB 3.2 Gen 1 - intern stik 2 x USB 2.0 - intern stik 1 x audio - intern stik
Strømkontakter
24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
Hardware egenskaber
8+2+1 Phase Power Design, Frozr AI Cooling, MSI AI Engine, MSI AI LAN Manager, Dr.MOS MOSFET, M.2 Shield FROZR, 10 Layer PCB, 2oz Copper PCB, Clear CMOS Button, præmonteret I/O-skjold, EZ Debug LED, EZ Conn-Design, MSI Steel Armor, MSI EZ DIY, flash BIOS-knap, ESD Protection, overspændingsbeskyttelse, MSI Memory Boost, transiente spændingsdæmpere, overstrømsbeskyttelse, MSI Audio Boost 5, MSI Mystic Light
Diverse

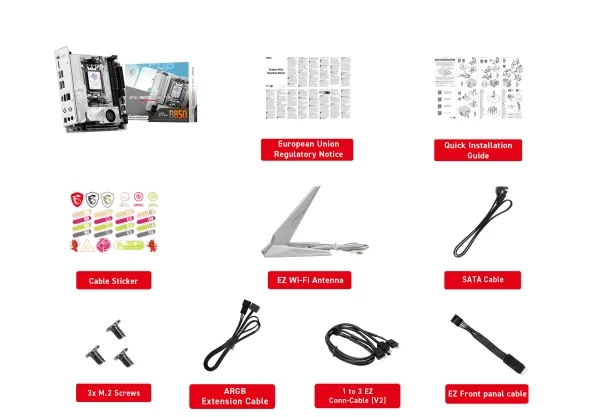

Udstyr inkluderet
EZ Wi-Fi antenne, 3 x M.2 skruer, ARGB forlængerkabel, 1 to 3 EZ Conn-Cable, EZ-frontpanelkabel, kabelmærkat
